Description
Multi-Purpose Injury Prevention

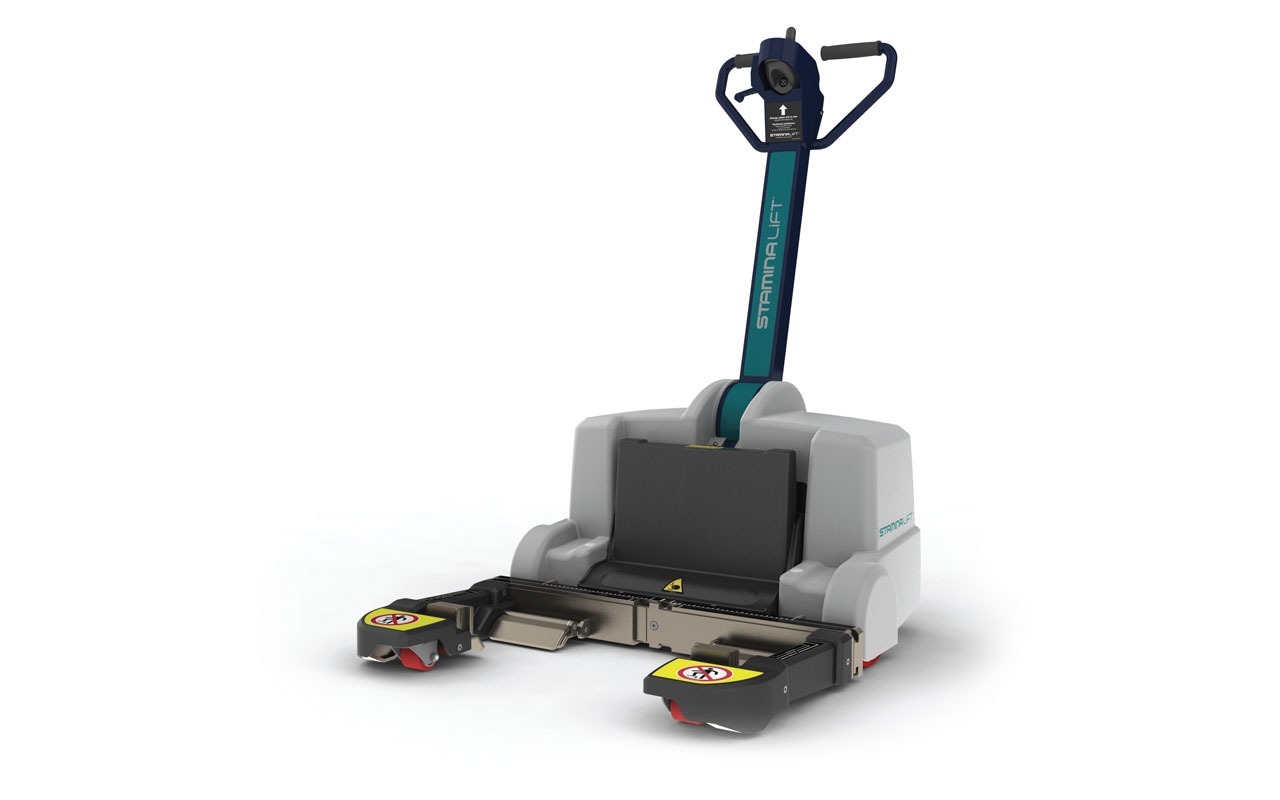

The StaminaLift® 5000 Transfer System is unlike any other hospital bed mover. It was designed and has been proven to prevent and reduce manual handling injuries in the healthcare workplace.
It aims to eliminate or reduce required push and pull forces by up to 90%. The 360° turning radius allows for easy maneuvering through hospital corridors and doorways. It is compact enough to operate within standard lifts or elevators.
The StaminaLift® 5000 Transfer System is suitable for moving equipment such as patient beds, stretchers or trolleys and linen carts.
Features
- Designed as hospital bed mover but suitable for use with other bulky equipment
- Jaw indicators for easy, hands-free connections
- Jaw mechanism captures wheel widths from 55-84cm and diameters from 12.5-20cm

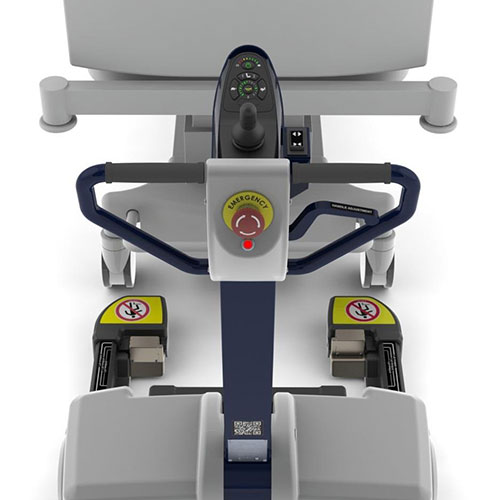

- Ergonomic joystick with horn for control of direction, speed and jaw movement
- Suitable for single person operation and includes fingertip control
- Works on all indoor surfaces
- Up to 15 hours operation with full charge
- Nightly recharge recommended using supplied automatic charger
Safety Features
- 600kg Safe Working Load (SWL)
- Brake and jaw bypass system for unexpected emergencies
- Ergonomically adjustable handle position
- Automatic braking for safe operation on slopes or inclines up to 7°
- Keyless control with safety lockout to prevent unauthorised use
- Quiet Operation: 65dB
Technical Specification
| Max Load Capacity | 300kg lift and 600kg push or pull (370 / 740kg optional on request) |
| Max Incline Capacity | +/- 7° (gradient of 1 in 8) |
| Weight | 160kg |
| Dimensions (in use) | 78cm W x 92.5cm L x 122cm H |
| Dimensions (in storage) | 78cm W x 93.5cm L x 48cm H |
| Batteries | Up to 15 hours operation with full charge (sealed GEL batteries) |
| Battery Charger | Suitable for 120V & 240V AC supply |
| Full Charge Time | Up to 6 hours |
| Turning Radius | 360° |
| Quiet Operation | 65dB |
